Product Description

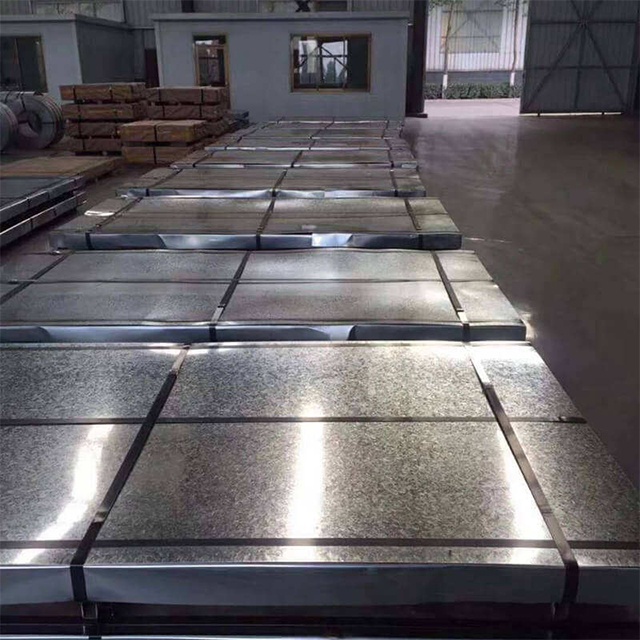

DX53D/SGCD2/SGCD3 Galvanized Sheet Description
DX53D galvanized sheet is a kind of galvanized steel sheet. The galvanized layer has good corrosion resistance and can effectively protect the steel sheet from corrosion. Besides, DX53D galvanized sheets have good processing performance and can be used for shearing, bending, welding, drilling and other processing operations. At the same time, the galvanized layer can also increase the hardness and strength of the steel plate, making it more wear-resistant. Its excellent corrosion resistance and processing properties make it widely used in the construction industry. In addition, galvanized steel sheets can also be used to make lightweight steel structures, brackets and other components, effectively improving the stability and service life of buildings.
Scope of Application
Galvanizing products are widely used in industry, agriculture, animal husbandry and fishery, energy, transportation, chemical industry, light industry, home appliances, construction, communications, national defense and other fields.
Product Parameters
|
Product Name |
DX53D/SGCD2/SGCD3 Galvanized Sheet |
|
Thickness |
0.12mm-6.00mm |
|
Width |
600mm-1500mm |
|
Length |
1m-12m, Support Customization |
|
Standard |
AISI, ASTM, DIN, JIS, GB, JIS, SUS, EN, etc. |
|
Zinc Layer |
Hot Galvanizing: 60-275g/m² |
|
Pre-galvanized: 80-275g/m² |
Chemical Composition
|
Standard |
Grade |
C |
Si |
Mn |
P |
S |
Ti |
|
Forcold Forming Chinese Standard |
DX51D+Z |
0.12 |
0.50 |
0.60 |
0.100 |
0.045 |
0.30 |
|
DX52D+Z |
0.12 |
0.50 |
0.60 |
0.100 |
0.045 |
0.30 |
|
|
DX53D+Z |
0.12 |
0.50 |
0.60 |
0.100 |
0.045 |
0.30 |
|
|
DX54D+Z |
0.12 |
0.50 |
0.60 |
0.100 |
0.045 |
0.30 |
|
|
DX56D+Z |
0.12 |
0.50 |
0.60 |
0.100 |
0.045 |
0.30 |
|
|
DX57D+Z |
0.12 |
0.50 |
0.60 |
0.100 |
0.045 |
0.30 |
|
|
Forcold Forming Japanese Standard |
SGCC |
0.15 |
0.50 |
0.80 |
0.050 |
0.030 |
0.025 |
|
SGCD1 |
0.12 |
0.50 |
0.60 |
0.040 |
0.030 |
0.025 |
|
|
SGCD3 |
0.08 |
0.50 |
0.45 |
0.030 |
0.030 |
0.025 |
|
|
SGCD4 |
0.06 |
0.50 |
0.45 |
0.030 |
0.030 |
0.025 |
|
|
For Structure Japanese Standard |
SGC340 |
0.25 |
0.50 |
1.70 |
0.200 |
0.035 |
0.025 |
|
SGC400 |
0.25 |
0.50 |
1.70 |
0.200 |
0.035 |
0.150 |
|
|
SGC490 |
0.30 |
0.50 |
2.00 |
0.200 |
0.035 |
0.025 |
|
|
SGC510 |
0.30 |
0.50 |
2.50 |
0.200 |
0.035 |
0.025 |
|
|
For Structure AISI Standard |
S220GD+Z |
0.20 |
0.60 |
0.70 |
0.100 |
0.045 |
0.025 |
|
S250GD+Z |
0.20 |
0.60 |
0.70 |
0.100 |
0.045 |
0.025 |
|
|
S280GD+Z |
0.20 |
0.60 |
0.70 |
0.100 |
0.045 |
0.025 |
|
|
S320GD+Z |
0.20 |
0.60 |
0.70 |
0.100 |
0.045 |
0.025 |
|
|
S350GD+Z |
0.20 |
0.60 |
0.70 |
0.100 |
0.045 |
0.150 |
|
|
S550GD+Z |
0.20 |
0.60 |
0.70 |
0.100 |
0.045 |
0.150 |
Mechanical Properties
|
Grade |
Yield Strength MPa≥ |
Tensile Strength MPa≥ |
Elongation A%≥ |
|
DX51D Z/ZM/AZ/AM |
240-380 |
270-500 |
22 |
|
DX52D Z/ZM/AZ/AM |
140-300 |
270-420 |
26 |
|
DX53D Z/ZM/AZ/AM |
140-260 |
270-380 |
30 |
|
DX54D Z/ZM/AZ/AM |
120-220 |
260-350 |
36 |
|
S220GD Z/ZM/AM |
220 |
300 |
20 |
|
S250GD Z/ZM/AZ/AM |
250 |
330 |
19 |
|
S280GD Z/ZM/AM |
280 |
360 |
18 |
|
S300GD A/AM |
300 |
380 |
18 |
|
S320GD Z/ZM/AM |
320 |
390 |
17 |
|
S350GD Z/ZM/AZ/AM |
350 |
420 |
16 |
|
S450GD A/AM |
450 |
480 |
15 |
|
S550GD Z/ZM/AZ/AM |
550 |
550 |
- |
Galvanized Surface Selection
|
Zero Spangle |
Minimized Spangle |
Normal Spangle |
Large Spangle |
||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Use of The Environment Recommended Zinc Thickness Indoor Use Z10 or Z12 (100g/㎡or 120g/㎡) Suburbs Z20 and Painting (200g/㎡) Urban or Industrial Area Z27 (270g/㎡) or G90 (US Standard) and painted Coastal Area Thicker than Z27 (270g/㎡) or G90 (US Standard) and painted Punch or Deep Drawing Application Thicker than Z27 (270grams/㎡) or G90 (US Standard) avoid coating peeling after stamping Surface Treatment Type Code Features Chromic Acid Treatment C Good corrosion resistance, suitable for bare state Chromic Acid Treatment+Oiling S Good corrosion resistance Phosphoric Acid Treatment (Including Sealing Treatment) P Have a certain corrosion resistance, good paint performance Phosphoric Acid Treatment (Including Sealing Treatment)+Oiling Q Has a certain corrosion resistance, good paint performance, prevent rust during transportation and storage Phosphoric Acid Treatment (Excluding Sealing Treatment) T Have a certain corrosion resistance, good paint performance Phosphoric Acid Treatment (Excluding Sealing Treatment)+Oiling V Has a certain corrosion resistance, good paint performance, and prevent rust Oiling O Prevent rust during transportation and storage No Treatment M Suitable for immediate painting Material Comparison Chinese Standard Japan Standard European Standard DX51D Z/DC51D Z (CR) SGCC DX51D Z DX52D Z/DC52D Z SGCD1 DX52D With DX53D Z/DC53D Z/DX54D Z/DC54D Z SGCD2/SGCD3 DX53D Z/DX54D Z S220/250/280/320/350/550GD Z SGC340/400/440/490/570 S220/250/280/320/350GD Z DX51D Z/DD51D Z (HR) SGHC DX51D Z Chemical Industry steel is used to construct facilities such as large storage tanks, refining equipment, and chemical pipelines. Natural Gas Industry Steel is also widely used in the energy industry, such as oil and gas pipelines. Oil Pipeline In the oil and gas industry, carbon steel is used to manufacture various equipment and pipelines. Ship In shipbuilding, steel is used to manufacture key components such as ship structures and engine parts. Stadium Steel plays an important role in steel structure buildings such as high-rise buildings, large-span buildings, and sports venues. Water Treatment The application of steel in water treatment is mainly reflected in the construction of water treatment equipment and the production of components such as pipelines. Q1: What metal materials do you supply? Jiangsu Zhongersheng is a professional manufacturer mainly supplying carbon steel, hot-dip galvanized steel, PPGI color coated steel, 201/304/316 stainless steel sheets, coils, tubes and profiles, as well as various steel structural parts. Our products serve infrastructure, photovoltaic, machinery manufacturing, chemical and new energy industries. Q2: Can you customize material grades, thickness and sizes? Full customization is available. For carbon steel, galvanized steel and stainless steel, thickness, width and length can be adjusted in accordance with ASTM & EN standards. Profiles can be cut and processed as per drawings, and special steel materials can be customized via production line scheduling. Q3: What’s the difference between galvanized steel and color coated PPGI? Hot-dip galvanized steel features pure zinc anti-rust coating with cost-effective and wear-resistant performance, suitable for steel brackets, guardrails and load-bearing structures, and supports secondary painting. PPGI takes galvanized sheet as base material with colorful coating for anti-rust & decorative purposes, widely used for factory roof/wall panels and energy storage housings. Thick galvanized steel is recommended for rainy coastal areas, while PPGI is ideal for decorative outdoor projects. Q4: Do you have spot inventory? What’s your MOQ? We built a 10,000-ton standardized warehouse with abundant spot stock of carbon steel, galvanized steel and stainless steel. MOQ is 1 ton for standard sizes; small samples of dozens of kilograms are acceptable. No upper limit for bulk engineering orders, mixed container loading of multiple steel types is supported. Q5: How long is the delivery time for spot goods & customized goods? Spot goods can be loaded within 3-7 days; simple cutting & bending processing orders take 7-10 days; mould opening & special steel customization takes 15-30 days, subject to specific specifications confirmation. Please give us a message |
