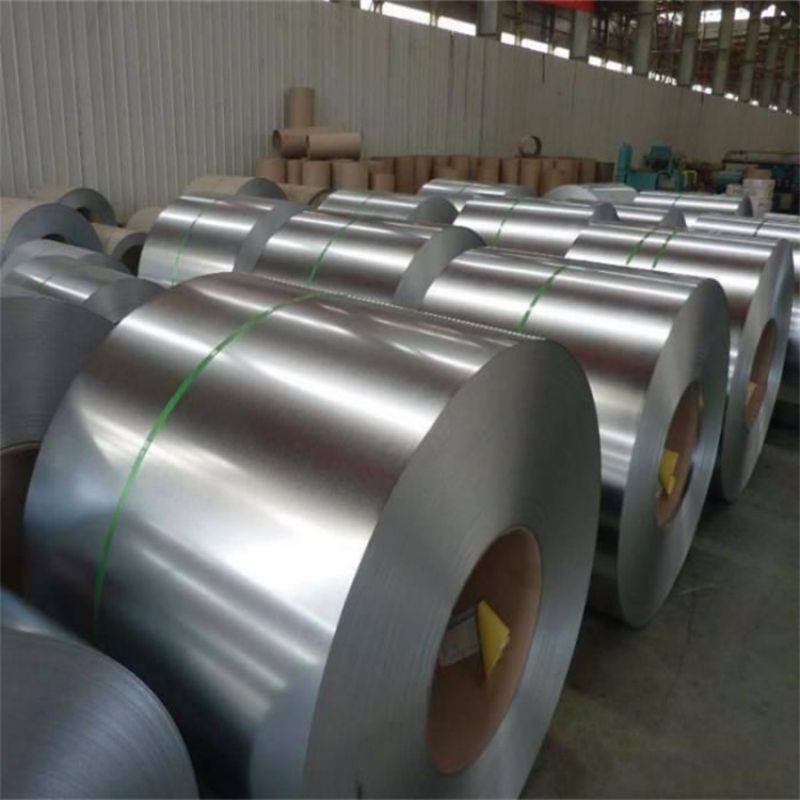

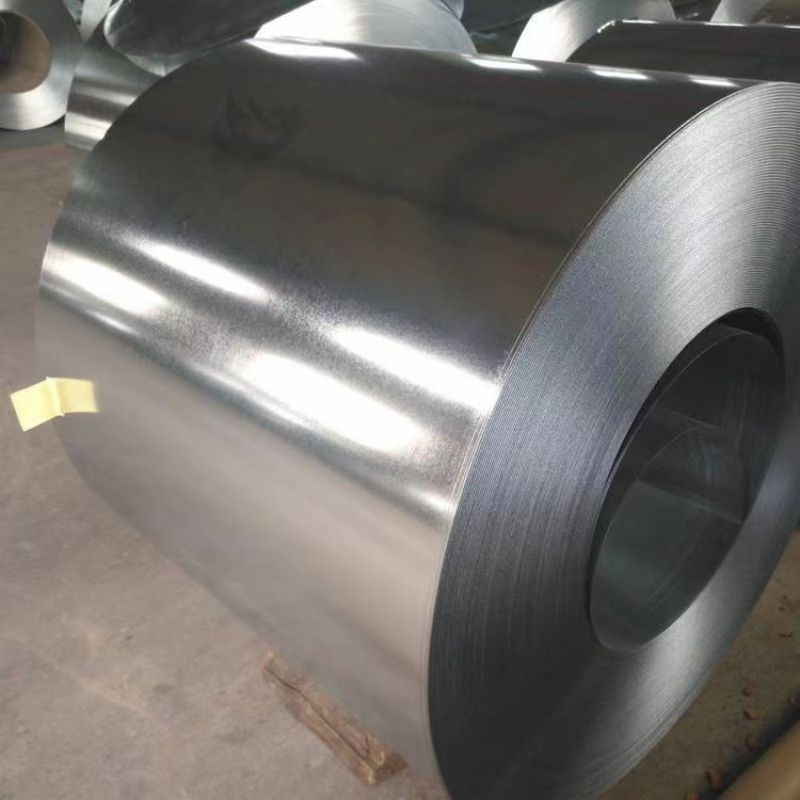

Galvanized Coil

Galvanized coil is made of a type of steel that is coated with zinc for protection by an electroplating process. The galvanized layer is applied to cold rolled steel at low temperatures. So it is also known as cold galvanized steel.

WhatsApp: +86 18015371666

Email: jack@huiyingsteel.com

Product Description

Galvanized Coil Description

Through electrolytic galvanizing, a uniform and dense zinc layer is finally formed on the surface of the steel, but the mechanical properties of the material are still maintained. Electrogalvanized steel is usually sold in coil or sheet form. EG coil is a kind of material that can be cut, slitted and profiled for other purposes. The steel grade of galvanized steel consists of base metal grade, galvanized (E), galvanized layer type and weight. The electro-galvanized products based on SPCC, SPCD, SPCE, SPCF and SPCG are named SECC, SECD, SECE, SECF and SECG respectively.
Full cold galvanizing process:

Chemical degreasing → hot water washing → water washing → electrolytic degreasing → water washing → acid washing → rust removal → water washing → electrogalvanizing process → water washing → passivation → hot water washing → drying → quality inspection → packaging and sales

Scope of Application

Building Materials Field
Electrogalvanizing has a wide range of applications in the field of building materials. First of all, electro-galvanizing can be used to manufacture construction steel, which not only prevents metal oxidation and prolongs its service life, but also enhances the toughness, strength and corrosion resistance of steel, and improves the performance of steel. Secondly, in the decoration of building exterior walls, electro-galvanized aluminum alloy, electro-galvanized iron alloy and other materials are also widely used, which can protect the steel structure and prevent oxidation, but also has the characteristics of beauty and fire prevention.
Automobile Manufacturing Field
Electrogalvanizing is also a commonly used material in the field of automobile manufacturing. Electro-galvanized coating can be used for surface protection and repair of automobile parts to avoid oxidation corrosion and damage, and to improve the service life of automobiles. The electro-galvanized coating can also be used in the manufacture of parts such as car frames and casings to avoid oxidation and corrosion, and improve the overall quality and durability of the car.
Home Appliance Manufacturing Field
In the field of home appliance manufacturing, galvanizing also has its important applications. For example, the manufacture of refrigerators, washing machines and other household appliances shell, lining, refrigerator and other parts, usually need to use electro-galvanized material for surface coating, to prevent metal oxidation, improve appearance and performance.

Product Parameters

Product Name	Galvanized Coil
Thickness	0.12mm-3.5mm
Width	600mm-1500mm
Length	508mm/610mm, Support Customization
Standard	AISI, ASTM, DIN, JIS, GB, JIS, SUS, EN, etc.
Zinc Layer	Hot Galvanizing: 60-275g/m²
Zinc Layer	Pre-galvanized: 80-275g/m²

Chemical Composition

Standard	Grade	C	Si	Mn	P	S	Ti
Forcold Forming Chinese Standard	DX51D+Z	0.12	0.50	0.60	0.100	0.045	0.30
	DX52D+Z	0.12	0.50	0.60	0.100	0.045	0.30
	DX53D+Z	0.12	0.50	0.60	0.100	0.045	0.30
	DX54D+Z	0.12	0.50	0.60	0.100	0.045	0.30
	DX56D+Z	0.12	0.50	0.60	0.100	0.045	0.30
	DX57D+Z	0.12	0.50	0.60	0.100	0.045	0.30
Forcold Forming Japanese Standard	SGCC	0.15	0.50	0.80	0.050	0.030	0.025
	SGCD1 SGCD2	0.12 0.10	0.50 0.50	0.60 0.45	0.040 0.030	0.030 0.030	0.025 0.025
	SGCD3	0.08	0.50	0.45	0.030	0.030	0.025
	SGCD4	0.06	0.50	0.45	0.030	0.030	0.025
For Structure Japanese Standard	SGC340	0.25	0.50	1.70	0.200	0.035	0.025
	SGC400 SGC440	0.25 0.25	0.50 0.50	1.70 2.00	0.200 0.200	0.035 0.035	0.150 0.150
	SGC490	0.30	0.50	2.00	0.200	0.035	0.025
	SGC510	0.30	0.50	2.50	0.200	0.035	0.025
For Structure AISI Standard	S220GD+Z	0.20	0.60	0.70	0.100	0.045	0.025
	S250GD+Z	0.20	0.60	0.70	0.100	0.045	0.025
	S280GD+Z	0.20	0.60	0.70	0.100	0.045	0.025
	S320GD+Z	0.20	0.60	0.70	0.100	0.045	0.025
	S350GD+Z	0.20	0.60	0.70	0.100	0.045	0.150
	S550GD+Z	0.20	0.60	0.70	0.100	0.045	0.150

Mechanical Properties

Grade	Yield Strength MPa≥	Tensile Strength MPa≥	Elongation A%≥
DX51D Z/ZM/AZ/AM	240-380	270-500	22
DX52D Z/ZM/AZ/AM	140-300	270-420	26
DX53D Z/ZM/AZ/AM	140-260	270-380	30
DX54D Z/ZM/AZ/AM	120-220	260-350	36
S220GD Z/ZM/AM	220	300	20
S250GD Z/ZM/AZ/AM	250	330	19
S280GD Z/ZM/AM	280	360	18
S300GD A/AM	300	380	18
S320GD Z/ZM/AM	320	390	17
S350GD Z/ZM/AZ/AM	350	420	16
S450GD A/AM	450	480	15
S550GD Z/ZM/AZ/AM	550	550	-

Galvanized Surface Selection

Zero Spangle	Minimized Spangle	Normal Spangle	Large Spangle

Use of The Environment	Recommended Zinc Thickness
Indoor Use	Z10 or Z12 (100g/㎡or 120g/㎡)
Suburbs	Z20 and Painting (200g/㎡)
Urban or Industrial Area	Z27 (270g/㎡) or G90 (US Standard) and painted
Coastal Area	Thicker than Z27 (270g/㎡) or G90 (US Standard) and painted
Punch or Deep Drawing Application	Thicker than Z27 (270grams/㎡) or G90 (US Standard) avoid coating peeling after stamping

Surface Treatment Type	Code	Features
Chromic Acid Treatment	C	Good corrosion resistance, suitable for bare state
Chromic Acid Treatment+Oiling	S	Good corrosion resistance
Phosphoric Acid Treatment (Including Sealing Treatment)	P	Have a certain corrosion resistance, good paint performance
Phosphoric Acid Treatment (Including Sealing Treatment)+Oiling	Q	Has a certain corrosion resistance, good paint performance, prevent rust during transportation and storage
Phosphoric Acid Treatment (Excluding Sealing Treatment)	T	Have a certain corrosion resistance, good paint performance
Phosphoric Acid Treatment (Excluding Sealing Treatment)+Oiling	V	Has a certain corrosion resistance, good paint performance, and prevent rust
Oiling	O	Prevent rust during transportation and storage
No Treatment	M	Suitable for immediate painting

Material Comparison

Chinese Standard	Japan Standard	European Standard
DX51D Z/DC51D Z (CR)	SGCC	DX51D Z
DX52D Z/DC52D Z	SGCD1	DX52D With
DX53D Z/DC53D Z/DX54D Z/DC54D Z	SGCD2/SGCD3	DX53D Z/DX54D Z
S220/250/280/320/350/550GD Z	SGC340/400/440/490/570	S220/250/280/320/350GD Z
DX51D Z/DD51D Z (HR)	SGHC	DX51D Z

Product Application

Chemical Industry

steel is used to construct facilities such as large storage tanks, refining equipment, and chemical pipelines.

Natural Gas Industry

Steel is also widely used in the energy industry, such as oil and gas pipelines.

Oil Pipeline

In the oil and gas industry, carbon steel is used to manufacture various equipment and pipelines.

Ship

In shipbuilding, steel is used to manufacture key components such as ship structures and engine parts.

Stadium

Steel plays an important role in steel structure buildings such as high-rise buildings, large-span buildings, and sports venues.

Water Treatment

The application of steel in water treatment is mainly reflected in the construction of water treatment equipment and the production of components such as pipelines.

Packaging and shipping

Factory Display

FAQ

Q1: What metal materials do you supply?

Jiangsu Zhongersheng is a professional manufacturer mainly supplying carbon steel, hot-dip galvanized steel, PPGI color coated steel, 201/304/316 stainless steel sheets, coils, tubes and profiles, as well as various steel structural parts. Our products serve infrastructure, photovoltaic, machinery manufacturing, chemical and new energy industries.

Q2: Can you customize material grades, thickness and sizes?

Full customization is available. For carbon steel, galvanized steel and stainless steel, thickness, width and length can be adjusted in accordance with ASTM & EN standards. Profiles can be cut and processed as per drawings, and special steel materials can be customized via production line scheduling.

Q3: What’s the difference between galvanized steel and color coated PPGI?

Hot-dip galvanized steel features pure zinc anti-rust coating with cost-effective and wear-resistant performance, suitable for steel brackets, guardrails and load-bearing structures, and supports secondary painting. PPGI takes galvanized sheet as base material with colorful coating for anti-rust & decorative purposes, widely used for factory roof/wall panels and energy storage housings. Thick galvanized steel is recommended for rainy coastal areas, while PPGI is ideal for decorative outdoor projects.

Q4: Do you have spot inventory? What’s your MOQ?

We built a 10,000-ton standardized warehouse with abundant spot stock of carbon steel, galvanized steel and stainless steel. MOQ is 1 ton for standard sizes; small samples of dozens of kilograms are acceptable. No upper limit for bulk engineering orders, mixed container loading of multiple steel types is supported.

Q5: How long is the delivery time for spot goods & customized goods?

Spot goods can be loaded within 3-7 days; simple cutting & bending processing orders take 7-10 days; mould opening & special steel customization takes 15-30 days, subject to specific specifications confirmation.
