Name: SA516Gr70 Pressure Vessel Steel Plate
SKU: 0



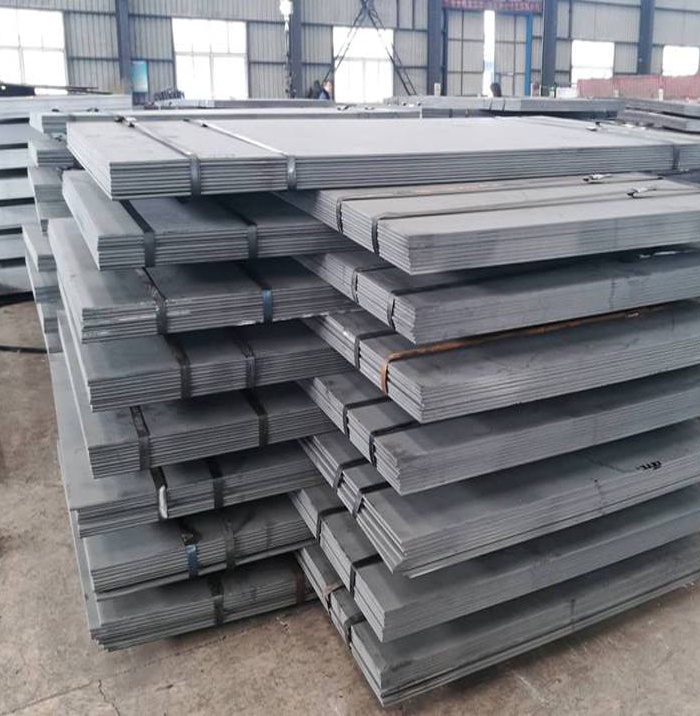

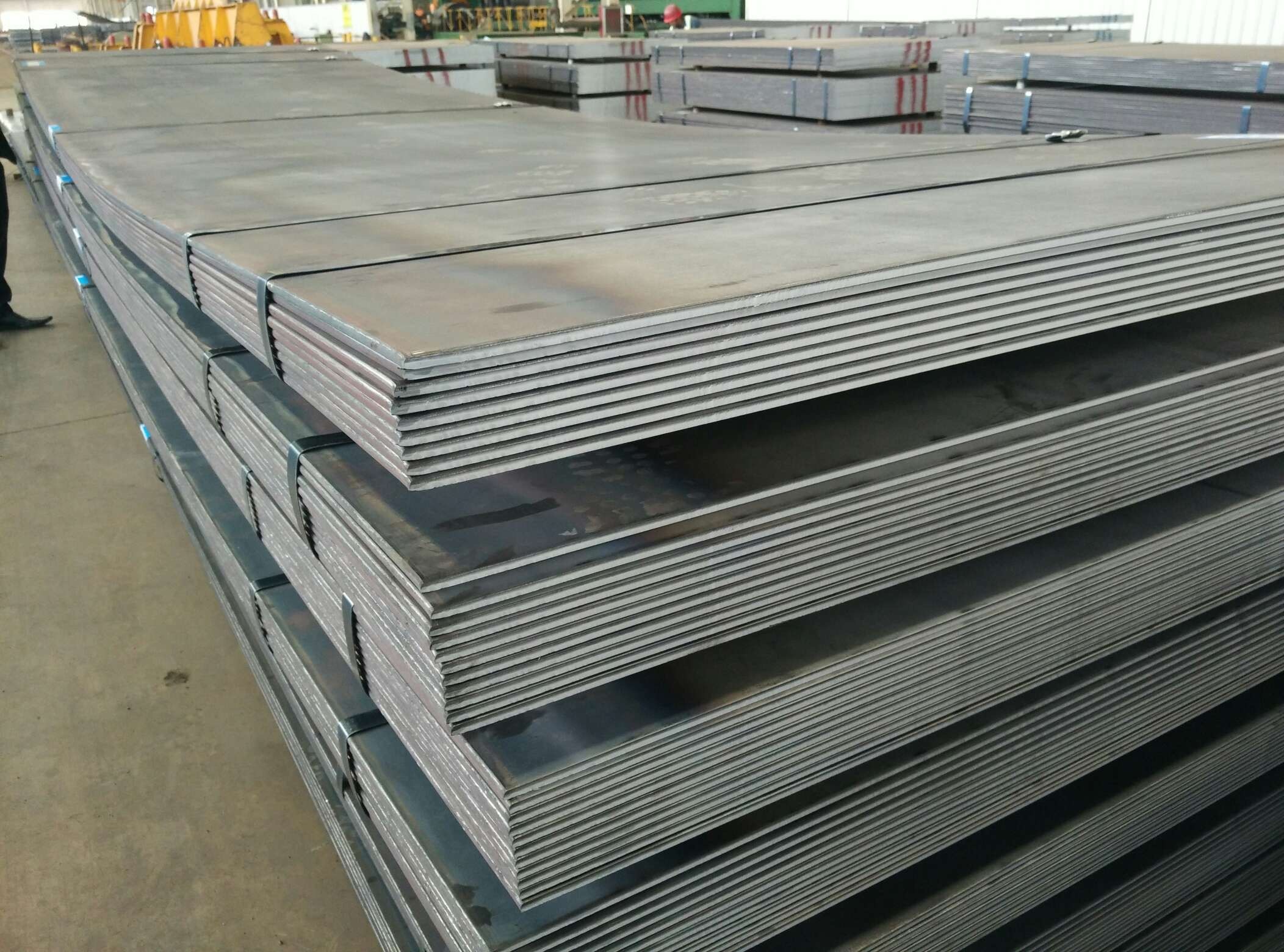

SA516Gr70 Pressure Vessel Steel Plate

ASME SA516 standard specification for pressure vessel plates, carbon steel for moderate and lower- temperature service.

WhatsApp: +86 18015371666

Email: jack@huiyingsteel.com

Product Description

SA516Gr70 Pressure Vessel Steel Plate Description

ASME SA516 standard specification for pressure vessel plates, carbon steel for moderate and lower- temperature service.
ASME SA516 plates 40mm and under in thickness is normally supplied in the as-rolled condition. The plates may be ordered normalized or stress relieved, or both. ASME SA516 grade plates over 40mm in thickness shall be normalized.

Product Parameters

Product Name	sa516gr70 Pressure Vessel Steel Plate
Production Process	Hot Rolling, Cold Rolling
Material Standards	AISI, ASTM, ASME, DIN, BS, EN, ISO, JIS, GOST, SAE, etc.
Width	100mm-3000mm
Length	1m-12m, or Customized Size
Thickness	0.1mm-400mm
Delivery Conditions	Rolling, Annealing, Quenching, Tempered or Standard
Surface Process	Ordinary, Wire Drawing, Laminated Film

Chemical Composition

SA516 Grade 70 Chemical Composition
Grade SA516 grade 70	The Element Max(%)
	C	Si	Mn	P	S
Thick<12.5mm	0.27	0.13-0.45	0.79-1.30	0.035	0.035
Thick12.5-50mm	0.28	0.13-0.45	0.79-1.30	0.035	0.035
Thick50-100mm	0.30	0.13-0.45	0.79-1.30	0.035	0.035
Thick100-200mm	0.31	0.13-0.45	0.79-1.30	0.035	0.035
Thick-200mm	0.31	0.13-0.45	0.79-1.30	0.035	0.035

Mechanical Properties

Grade	SA516 Grade 70 Mechanical Property
	Thickness	Yield	Tensile	Elongation
SA516 Grade 70	mm	Min Mpa	Mpa	Min %
	6-50	260	485-620	21%
	50-200	260	485-620	17%

Physical Performance

Physical Performance	Metric	Imperial
Density	7.80 g/cc	0.282 lb/in³

Scope of Application

ASTM A202 boiler vessel plate is widely used in oil and gas engineering projects, for the manufacture of pressure vessels, boilers, storage tanks and heat exchangers and other equipment.

Product Application

Chemical Industry

steel is used to construct facilities such as large storage tanks, refining equipment, and chemical pipelines.

Natural Gas Industry

Steel is also widely used in the energy industry, such as oil and gas pipelines.

Oil Pipeline

In the oil and gas industry, carbon steel is used to manufacture various equipment and pipelines.

Ship

In shipbuilding, steel is used to manufacture key components such as ship structures and engine parts.

Stadium

Steel plays an important role in steel structure buildings such as high-rise buildings, large-span buildings, and sports venues.

Water Treatment

The application of steel in water treatment is mainly reflected in the construction of water treatment equipment and the production of components such as pipelines.

Packaging and shipping

Factory Display

FAQ

Q1: What metal materials do you supply?

Jiangsu Zhongersheng is a professional manufacturer mainly supplying carbon steel, hot-dip galvanized steel, PPGI color coated steel, 201/304/316 stainless steel sheets, coils, tubes and profiles, as well as various steel structural parts. Our products serve infrastructure, photovoltaic, machinery manufacturing, chemical and new energy industries.

Q2: Can you customize material grades, thickness and sizes?

Full customization is available. For carbon steel, galvanized steel and stainless steel, thickness, width and length can be adjusted in accordance with ASTM & EN standards. Profiles can be cut and processed as per drawings, and special steel materials can be customized via production line scheduling.

Q3: What’s the difference between galvanized steel and color coated PPGI?

Hot-dip galvanized steel features pure zinc anti-rust coating with cost-effective and wear-resistant performance, suitable for steel brackets, guardrails and load-bearing structures, and supports secondary painting. PPGI takes galvanized sheet as base material with colorful coating for anti-rust & decorative purposes, widely used for factory roof/wall panels and energy storage housings. Thick galvanized steel is recommended for rainy coastal areas, while PPGI is ideal for decorative outdoor projects.

Q4: Do you have spot inventory? What’s your MOQ?

We built a 10,000-ton standardized warehouse with abundant spot stock of carbon steel, galvanized steel and stainless steel. MOQ is 1 ton for standard sizes; small samples of dozens of kilograms are acceptable. No upper limit for bulk engineering orders, mixed container loading of multiple steel types is supported.

Q5: How long is the delivery time for spot goods & customized goods?

Spot goods can be loaded within 3-7 days; simple cutting & bending processing orders take 7-10 days; mould opening & special steel customization takes 15-30 days, subject to specific specifications confirmation.
